Max. Loading Weight of 5000kg High Precision DRO Horizontal Boring and Milling Machine

Name: Max Loading Weight of 5000kg High Precision DRO Horizontal Boring and Milling Machine
Brand: TIMEWAY
Price: 60 USD

Table Travel (X) (mm) : 900

Machining Capacity : Medium Duty

Table Travel (Y) (mm) : 900

Table Travel (Z) (mm) : 1400

Spindle Taper : Other

Range of Spindle Speed(r.p.m) : 8 - 1000 r.p.m

Place of Origin : China

Brand Name : TIMEWAY

Model Number : TPX-110B

Type : Horizontal

Spindle Motor Power(kW) : 7.5

Voltage : 220V/380V/400V

Dimension(L*W*H) : 4910x2454x2750

Weight (KG) : 11500

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

spindle diameter : 110mm

max. spindle torque : 1225N.m

Spindle speed range : 8-1000rpm

spindle speed steps : 22 steps

max. facing head torque : 1960N.m

facing head diameter : 600mm

facing head range : 4-200rpm

max. loading weight on table : 5000kg

rapid feed speed (X/Y/Z/W) : 2500mm/min

machine weight : 11500kg

Number of Axes : 5

Condition : New

Showroom Location : South Korea, Chile, UAE, Colombia, Ukraine, Malaysia, Canada, Turkey, United Kingdom, United States, Italy, Peru, Pakistan, India, Mexico, Russia

Core Components : Bearing, Motor, Gearbox

Table Travel (mm) : 900x900x1400

Year : 2021

Applicable Industries : Manufacturing Plant, Energy & Mining, Other

Packaging Details : Wooden cases(can be fumigated)

Supply Ability : 150 Set/Sets per Month

Price : $60,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

Products Description

Max. Loading Weight of 5000kg High Precision DRO Horizontal Boring and Milling Machine

Features:

1. This series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and non-ferrous workpieces. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes. The facing plate slide can be fed radially, which enables the machine to bore large size holes, turning outside diameters, and grooving. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc.

2. The spindle has 3 supporting points and good rigidity. Nitrogen treatment is employed on the main surface, which enables the spindle to have high hardness and long service life.

3. The spindle and feed speed change adopt manual rotary valve in the headstock and hydraulic pre-selection, which is convenient for operation.

4. The motion distribution and clamping of headstock vertical travel, worktable longitudinal and transverse travel and rotary motion all adopt automatic control and centralized operation, which result in the saving of time and effort, also making the machine convenient and reliable to use.

5. The worktable is equipped with 4x90° optical positioning device, which assures high accuracy.

Specification	Unit	TPX-110B	TPX-110C	TPX-110D	TPX-130B	TPX-130C
Spindle
Spindle diameter	mm	110	110	110	130	130
Spindle taper	-	MT6	MT6	MT6	Metric 80	Metric 80
Max. spindle torque	N.m	1225	1225	1225	3136	3136
Max. spindle thrust	N	12250	12250	12250	31360	31360
Spindle speed steps	-	22	22	22	24	24
Spindle speed range	rpm	8-1000	8-1000	8-1000	4-800	4-800
Main motor power	-	7.5	7.5	7.5	15	15
Facing head
Max. facing head torque	N.m	1960	1960	1960	4900	4900
Facing head diameter	mm	600	600	600	750	750
Facing head speed range	rpm	4-200	4-200	4-200	2.5-125	2.5-125
Facing head speed steps	-	18	18	18	18	18
Table
Table size	mm	1100x960	1100x960	1100x960	1600x1400	1800x1600
Max. loading capacity on table	kg	5000	5000	5000	8000	10000
T-slot size	mm	22	22	22	28	28
T-slot count	-	7	7	7	9	11
Working range
X-axis travel	mm	900	1250	1600	1600	2000
Y-axis travel	mm	900	900	1200	1400	1800
Z-axis travel	mm	1400	1400	1400	2000	2000
W-axis travel (spindle)	mm	600	600	600	900	900
U-axis travel (facing slide travel)	mm	180	180	180	250	250
B-axis rotary angle (table)	°	360° (4x90°)	360° (4x90°)	360° (4x90°)	360° (4x90°)	360° (4x90°)
Distance between spindle center and worktable	mm	0-900	0-900	0-900	0-900	0-900
Feed range
Rapid feed range (X/Y/Z/W)	mm/min	2500	2500	2500	2500	2500
Range of axes speed/spindle revolution (X/Y/Z/W)	mm/rev	0.04-6/0.01-1.88	0.04-6/0.01-1.88	0.04-6/0.01-1.88	0.05-8/0.01-2	0.05-8/0.01-2
Accuracy
Measurement reading accuracy (X/Y/Z)	mm	0.005	0.005	0.005	0.005	0.005
Measurement reading accuracy (B-axis)	°	0.001°	0.001°	0.001°	0.001°	0.001°
Others
Overall dimensions (LxWxH)	mm	4910x2454x2750	4910x2870x2750	5028x3359x3079	6995x3647x3442	7030x4665x3800
Machine weight	kg	11500	13000	14000	24000	28000

- MT6 spindle (110 mm)

- Metric 80 spindle (130 mm)

- Facing plate

- Boring tool holder

- Work lamp

- Cooling system

- Hydraulic system

- Lubrication pump

- NEWALL X/Y-axis DRO

- MITSUBISHI PLC control

- CE-mark electrical components

- Level wedges & foundation bolts

- Operating tools

- Operation manual

- ISO (7:24) spindle

- NEWALL Z-axis DRO

- Rear column

- Turning device & gears

Bed

Our high quality casting feature polished and hardened guideways. The castings are internally reinforced to

maximize rigidity and stability.

Control Panel

Available in hanging or swing-arm arrangements, the

control panel is easy to use and reduces operator

fatigue.

Table

Table rotates 360°, 1100x960mm large table provides

milling of workpiece weights of up to 5 tons.

Rear Column

As an optional accessory, auxiliary support boring bar,

boing large stroke deep holes and keep coaxiality.

Column

Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.

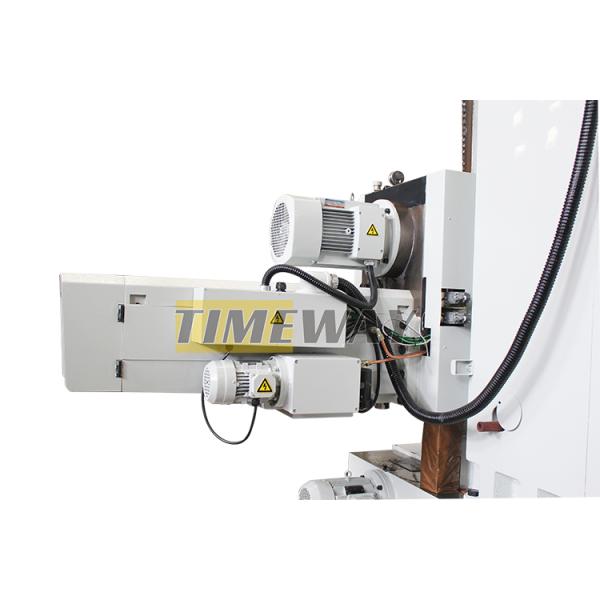

Headstock

Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.

Spindle & Facing Plate

Facing plate and drill spindle with different task specific speed ranges according to the various functions.

Hydraulic System

Pressure adjusted via relief valve. Variable speed achieved via a rotary valve.

Why Choose Us

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

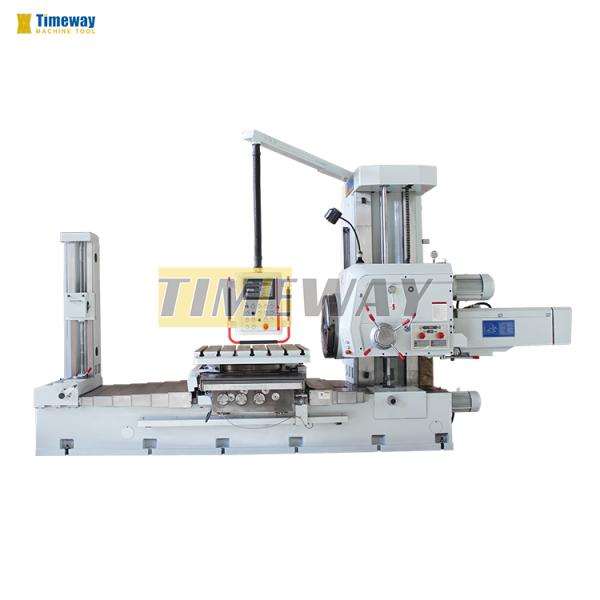

Max. Loading Weight of 5000kg High Precision DRO Horizontal Boring and Milling Machine Images
